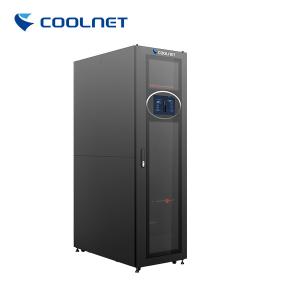

Deeply Combined Cabinets Designed For Less Available Space Micro Data Processing Center
Product Introduction
| Coolnet micro-module adopts integrated intelligent cabinet and reliable UPS power supply system, and it is also equipped with refrigeration system and dynamic loop monitoring system to monitor the working status of equipment in real time and ensure the operation of equipment. And Coolnet micro-module integrated cabinet adopts the design of fully sealed which realizes the comprehensive management of all systems through monitoring system. Meanwhile, this comprehensive management could simplify the process of design and construction, as well as belongs to the infrastructure of deeply integrated data center. |
|
Main Features
 | 1.The box has the characteristics of dust-proof, sun-proof, rain-proof, etc., and is fully adaptable to the outdoor environment. 2.The equipment warehouse cabinet adopts ventilation and heat dissipation. 3.Each cabinet is equipped with DC lighting fixtures. 4.The cabinet has sensing ability and environmental monitoring function, which can realize and upload alarms such as power failure, power failure, access control, temperature, humidity, smoke, water immersion, and battery voltage. 5.The layout of the cabinet is reasonable, the cable introduction, fixing and grounding are convenient for operation and maintenance. Power cables, signal cables and fiber optic cables have separate entry holes and will not interfere with each other. 6.The cables used in the cabinet are made of flame-retardant materials. |
Application
| |
Technical Parameter
| Model | EC08 | EC12 | EC20 | ERx |
| Power | 3KVA | 3-6KVA | 6-30KVA | |
| Number of cabinets | 0.8m high cabinet, available space 8U | 1.2m high cabinet, available space 16U | Standard 42U cabinet, free space 30U | 2-10 standard 42U glass door cabinets |
| Enclosed cabinet | Glass door, IP5X, full cold and hot channel sealing | |||
| Power supply | 220VAC, 3KVA UPS, power backup customized as required, Class C lightning protection | 220VAC, 3-6KVA UPS, customized standby power, C-level lightning protection | 220V/380VAC, 6-30KVA UPS, power backup customized as required, Class C lightning protection | |
| Refrigeration | Unique air duct design, without air conditioner and outdoor unit | Refrigerating capacity 3.5-6.5KW optional, variable frequency EC fan; Quick coupling; Low load anti condensation; | Refrigerating capacity 3.5-10.5KW optional, variable frequency EC fan; Quick coupling; Low load anti condensation; | |
| Monitor | 1U rack type monitoring host, monitoring temperature and humidity, door magnet, smoke sensor, electricity, etc., without display | 1U rack type monitoring host/10 inch touch screen monitoring host (0U), temperature and humidity, door magnet, smoke sensor, electricity, refrigeration monitoring | 10 inch touch screen monitoring host (0U), temperature and humidity, door magnet, smoke sensor, electricity, refrigeration monitoring | |
